The hydraulic rotator for log grapples BINI HCS T.1 360° is designed to achieve a torque of 350 Nm at a pressure of 250 bar (25 MPa) and to support an axial load of 10 kN (1000 kg). The rotation is bidirectional continuous and unlimited.
This hydraulic rotator is equipped with an output shaft where there is a transverse hole of 20 mm diameter. The connection to the log grapple is made by inserting a pin into this hole or directly through a Rotator-Clamp plate.
On the other side, on the head, there is a 25 mm diameter hole for mounting the rotator on the machine boom.
The hydraulic rotator BINI HCS T.1 360° is ideal for installation on truck cranes, loaders and hydraulic excavators of 15 quintals.
ACCESSORIES

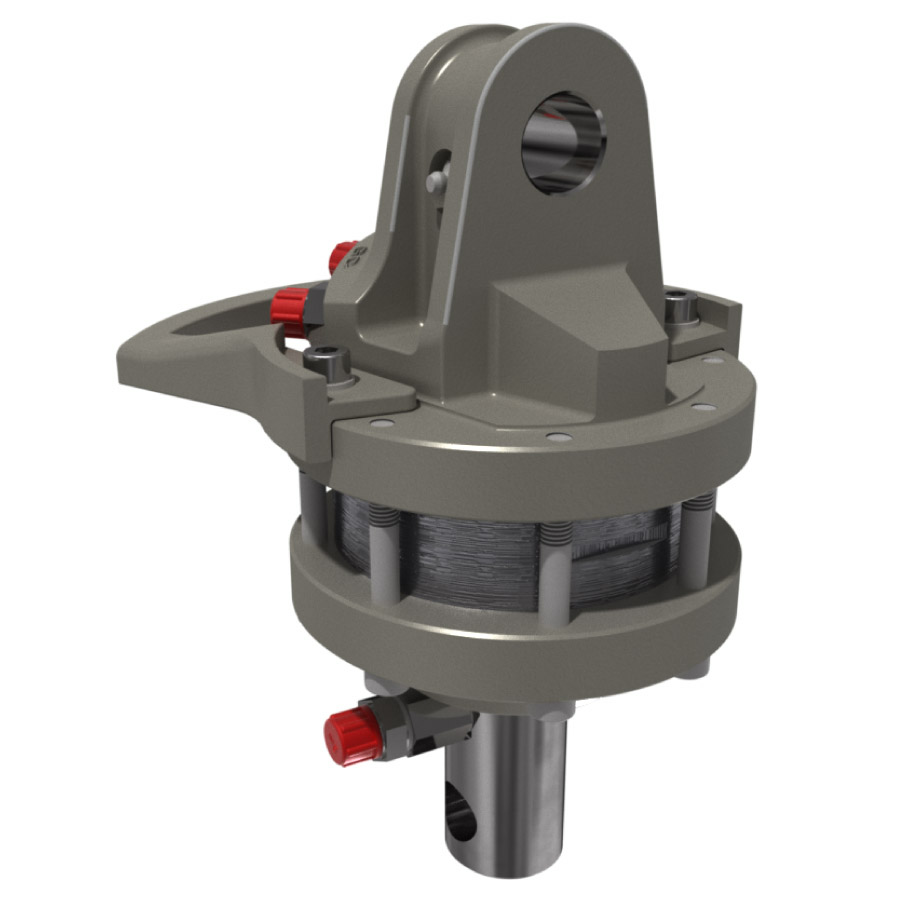

3D RENDERING
PRODUCT DIMENSIONAL
